54m

Intro

Outside

General

Specifications

54m

This its something new

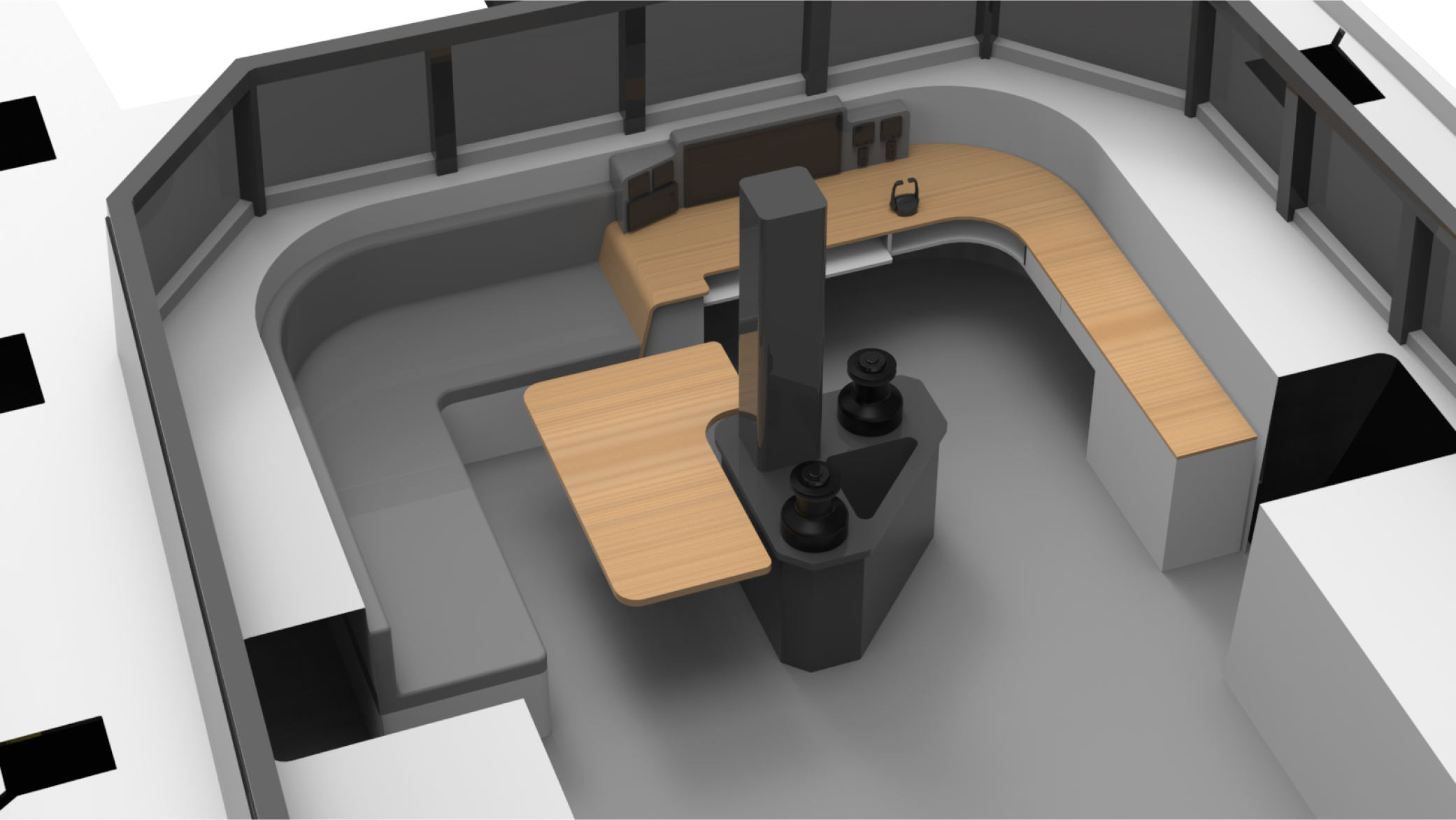

Introducing the 54m Catamaran, the pinnacle of performance cruising and unparalleled comfort. This exceptional vessel stands out in the marine world with its unique tri-command system, featuring dual external controls on each side and a central command within the cabin. This innovative setup provides the captain with supreme control and precision, ensuring a seamless sailing experience.

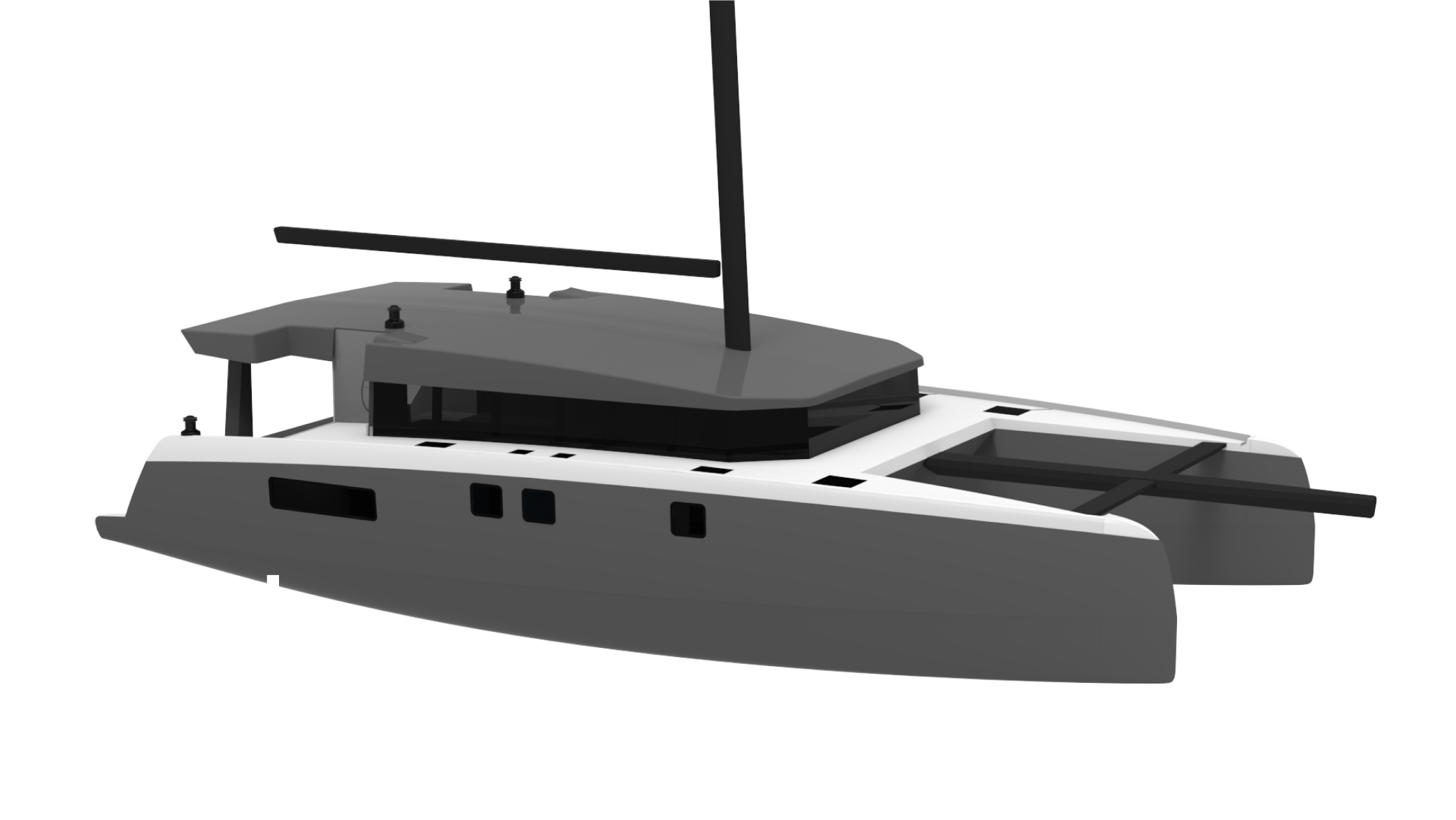

Catamaran half view

Simplicity

Modern

Fast

Beautiful

16.5 m

Length on waterline (LOA)

18 m

Length overall with bowsprit

8 m

Maximum beam

2 m

Maximum beam of each hull

520 L

Fuel tank capacity

550 L

Water tank capacity

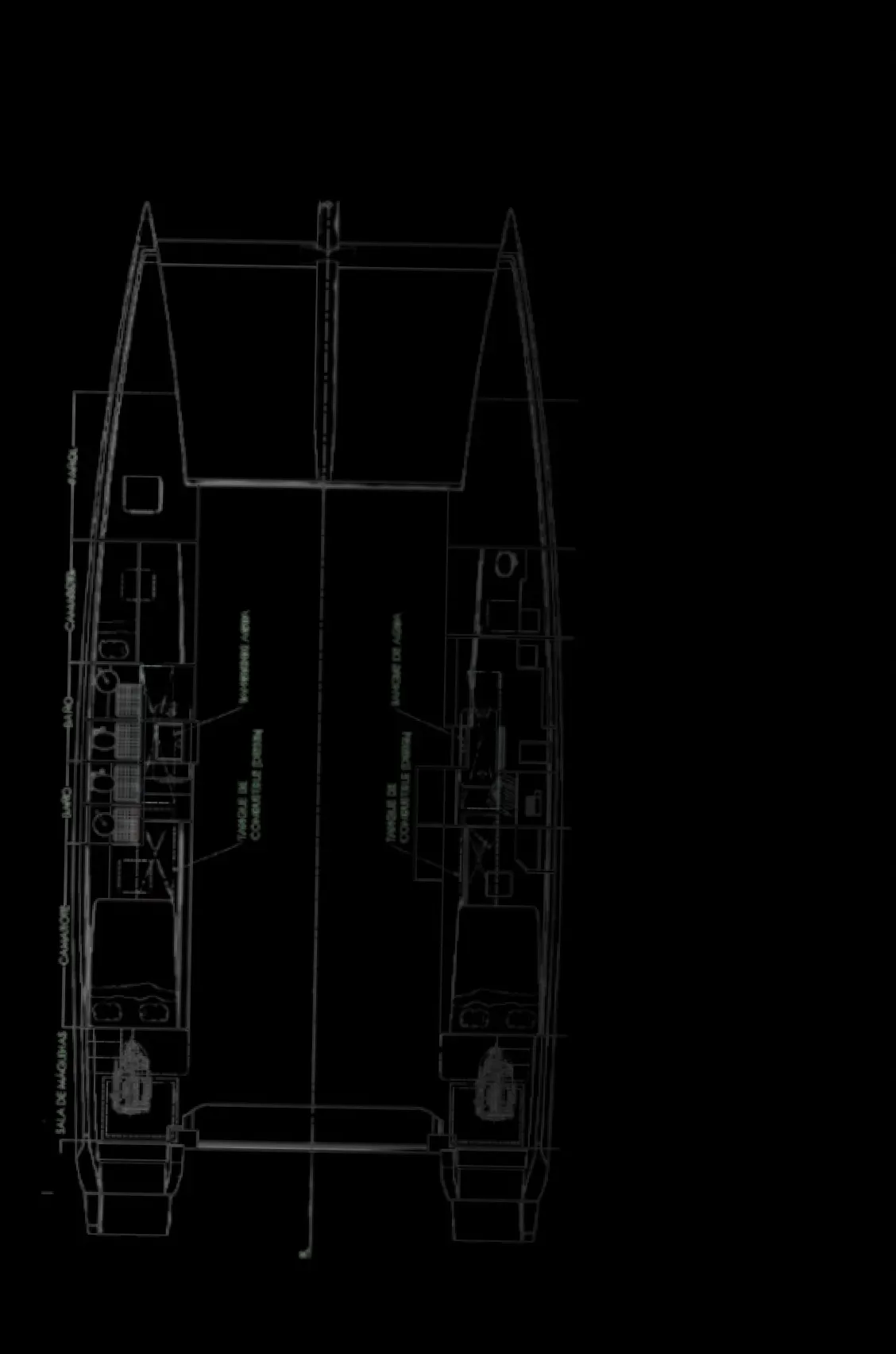

General view

Specifications

Hull Length : 16.5 m

Overall Length : 18.1 m

Width : 8 m

Width between axis : 5.8 m

Bridgedeck clearance : 1 m

Draught (min.) : 0.86 m

Draught (max.) : 3 m

Performance and Capacity

Lightship displacement : 14 Tn

Full displacement : 17 Tn

Diesel tanks : 800 L

Water tanks : 550 L

Engine : 2 x 80 HP / Yanmar - saildrive

Background details
