The perfection of simplicity

"This magnificent vessel stands as the pinnacle of our design portfolio, requiring unparalleled levels of intricacy, finesse and ingenuity. Its intricacy and complexity proved to be an immense challenge, for our aim from the outset was to create a vessel that embodied simplicity, comfort, speed, and aesthetic splendor for the discerning seafarer.

We are proud to proclaim that our endeavors have borne fruit, and that we have succeeded in crafting a masterpiece that satisfies all of these criteria"

Minuet Calabrese Naval Architecture

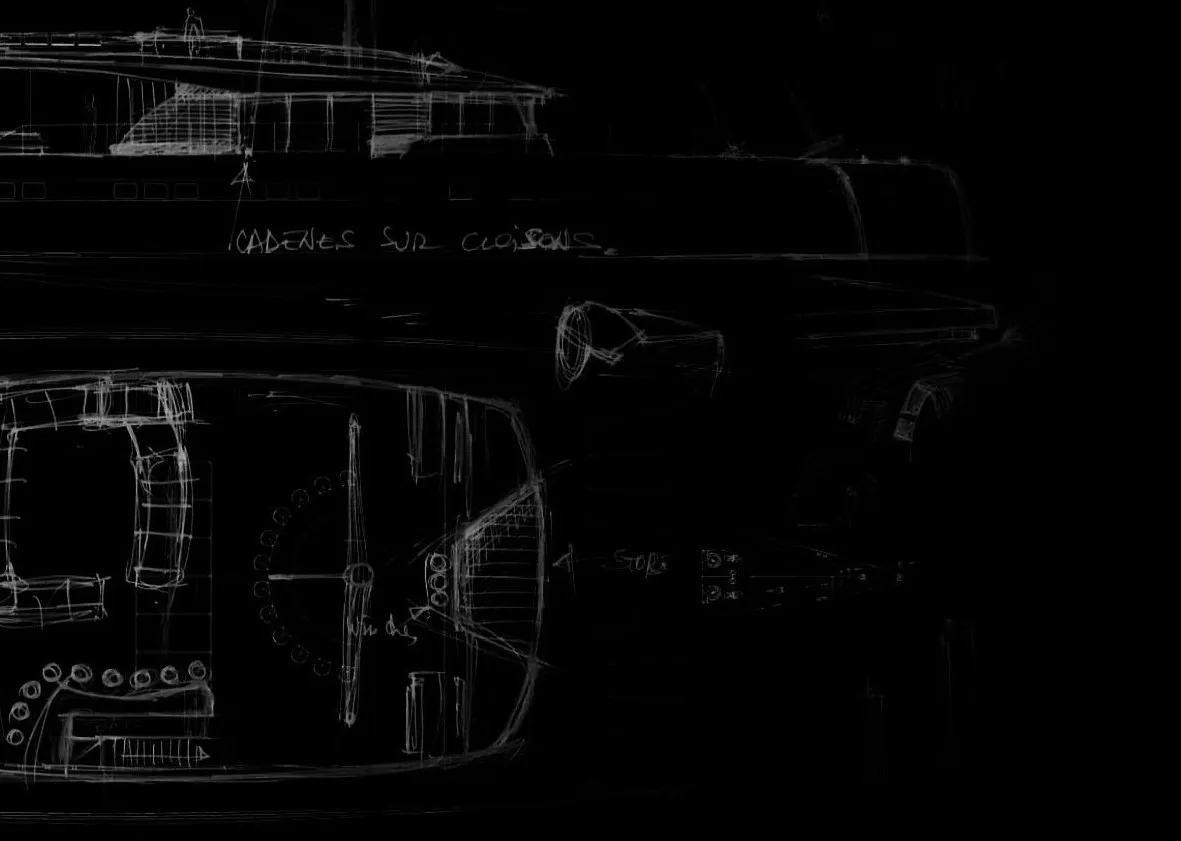

Catamaran half view

Simplicity

Modern

Fast

Beautiful

16.34 m / 53.60 ft

LOA

2x29 Hp

Engines

45 m² / 485 ft²

Living Space

2x200 L / 2x52.83 Us Gal

Fuel capacity

108 m² / 1162.50 ft²

Sail Main

2x200 L / 2x52.83 Us Gal

Water capacity

General view

Specifications

LOA : 16.34 m / 53.60 ft

LWL : 16.34 m / 53.60 ft

BOA : 8 m / 26.24 ft

Draft Board Down : 3 m / 9.84 ft

Draft Board Up : 1.50 m / 4.92 ft

Mast Clearance : 25.30 m / 83 ft

Mast Length : 22.20 m / 72.83 ft

Displacement Light Ship : 11 Tn

Displacement Max Load : 14 Tn

Bridge Deck Clearance : 1 m / 3 ft

Sail Plan

Sail Main : 108 m² / 1162.50 ft²

Jib : 42 m² / 452 ft²

Upwind Sail Area : 150 m² / 1614.58 ft²

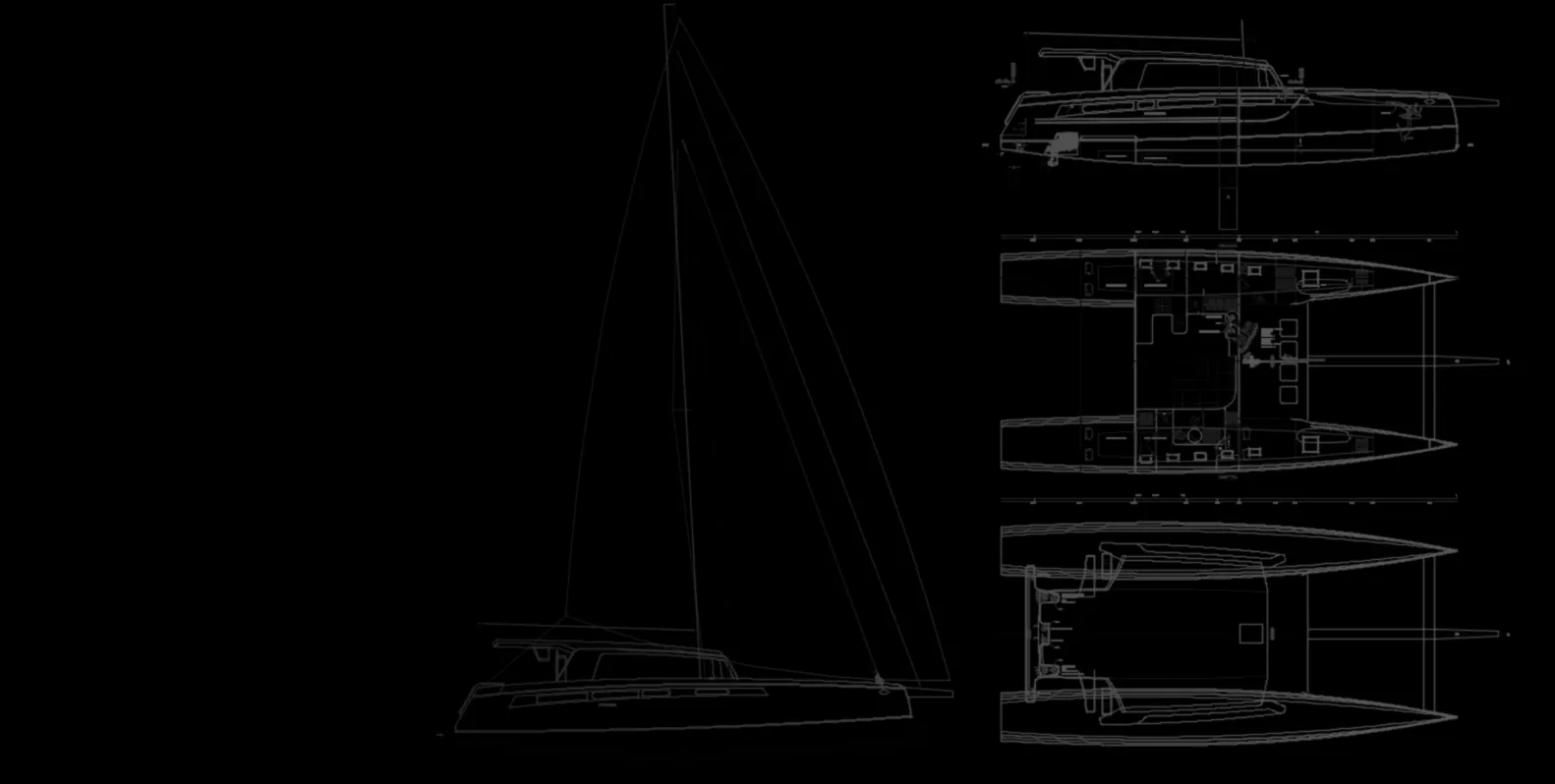

Background details
